bien envie d'essayé,vu que mon chargeur les prends...c'est pour du touring 10.5 en loisir/ligue

merci

Words: RC Driver Staff

As Lithium Polymer batteries have become the standard in RC and capacities and cell counts continually increase, so have the demands for more powerful chargers. High milliamp hours (mAh) batteries increase the charge duration. To combat this, more LiPo batteries now allow charge rates as high as 12C. Of course, you will be unable to take advantage of higher charge rates without high-powered equipment like the TrakPower VR-1 charger.

VITALS
HOW MUCH: $199.98
MODEL NO.: TKPP5000
POWER INPUT: 11-15V external DC power supply
BATTERY TYPE: NiCd/NiMH: 1-14 cells, LiPo/Li-Ion/LiFe: 1-6 cells, Pb: 1-12 (24V)
CHARGE RATE: Variable .1-20A
DISCHARGE RATE: .1-10A
BATTERY INPUT: Banana Input
COOLING: Three built-in fans
DIMENSIONS: 7.0×6.1×2.56 in. (180x155x65mm)
WEIGHT: 2.1 lb. (970g)

PROS
• Large, tilting screen
• Directly docks onto TrakPower DPS power supply
• Powerful output
• Compact design
• Capable of charging two batteries simultaneously

CONS
• Partial features on charge port #2
• Limited to 6-amp on charge port #2

WHAT IT’S GOT
• The VR-1 charger features a compact aluminum exterior and a very large tilt LCD display that offers a wealth of information such as individual cell voltage, internal resistance, charge graphs, charge duration and more.

• Dual port charging and balancing is a great feature. The charger allows the user to adjust the wattage to ports one and two. Port number one can have a maximum wattage of up to 250 and port two can have up to 50. 250W is the maximum output of the charger. This means that if you intend to charge two batteries simultaneously, the wattage cannot exceed 250.

• The charger is capable of charging up to 20 amps on port number one and six amps on port number two. (Wattage figures are limited by the user’s power supply.)

• The VR-1 includes charge leads (Banana to Dean’s) and balance boards for both ports. Two balance board types are included for each port, which means you will be able to charge and balance virtually any RC LiPo battery.

• When you purchase the optional TrakPower DPS power supply, the charger can dock on top of the power supply without any wires to connect the two devices. This allows the charger and power supply to function as one compact unit and occupy minimal space.

• The charger features a 40-battery memory capability and comes pre-programmed for batteries from TrakPower, Duratrax Onyx and LiFeSource.

• The VR-1 features three robust fans that will automatically engage when necessary to ensure that the charger maintains efficient operation.

HOW IT WORKS
The TrakPower VR-1 is a DC charger, which means it does not directly plug into a power outlet. In order for the charger to work, it must be connected to either a large battery or a power supply that would plug into an outlet. You can use a power supply of your choosing or purchase the optional TrakPower DPS power supply—very trick, which allows direct docking for the VR-1 (item no. TKPP5505, $99.98).

The TrakPower VR-1 is intuitive for the most part. After briefly playing with the buttons, I was able to figure out how to name the charger, review cell data and swap between charger port number one and number two and more. I did find it a bit more difficult to actually charge a battery because each different battery (different milliamp, cell structure, etc.) requires programming into the charger’s model memory. Unfortunately, it is not possible to simply select your charge rate and cell structure to begin charging (at least not on charge port number one).

Once the charge cycle has commenced, you will be able to access a significant amount of data via the various screens. These include time of charge, charge rate, charge graphs, individual cell voltage, overall voltage and more. When the charge is complete, you will hear an audible jingle that you can customize to alert you that the charge has been completed. If you leave your battery connected for approximately ten minutes after the charge has completed, you will have access to the internal resistance numbers. Internal resistance numbers are important as they can clue you in on when your pack is at the end of its life cycle.

FINAL THOUGHT
The TrakPower VR-1 is a good charger, but is not without its faults. The charge port number two leaves a lot to be desired in terms of graphical data and charge rates. In terms of port number one, the charger is excellent as it provides all of the battery data you will need. Additionally, you can charge at up to 20 amps and have a fully charged pack that is ready-to-run within minutes.

The TrakPower VR-1 not only offers the performance to charge my four-cell batteries (ThunderPower 12C charge rates) at high rates without issue, it also delivers when it comes to the backlit LCD display, ability to dock with the DPS power supply, and its compact size. Though charge port number two does not offer enough power to quickly charge 4S LiPo packs, charge port number one is so fast that I feel the second port is practically unnecessary.

All in all, I am thoroughly satisfied with the TrakPower VR-1 and do not at all regret the purchase of this fine piece of equipment.

Congratulations on your choice of G-FORCE G8 Duo 1400W Balance Charger/Discharger. This unit is simple to use, but the operation of a sophisticated charger such as G-FORCE G8 Duo 1400W does require some knowledge on the part of the user. These operating instructions are designed to ensure that you quickly become familiar with its functions. It is therefore important that you read right through the Operating Instructions, Warning and Safety Notes before you attempt to use your new charger for the first time. We hope you have many years of pleasure and success with your new battery charger.

G-FORCE G8 Duo 1400W also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. And it comes with Synchronous Mode: When charging two same batteries, both charging channels can be set by channel one. What's more,

users could also use it as Lithium Battery Meter and Lithium Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

G8 Duo 1400W employs the circuit that features output power of 700W X2 watts. It can charge 20 cells of NiCd/NiMH or 8 series of Lithium batteries with maximum current of 30A. G8 Duo 1400W has an individual cell voltage balancer, so it does not required any balancer separately when charging Lithium batteries (LiPo/LiIon/LiFe) for voltage balancing.

Reliable/durable membrane button systems are using for charger controls. The fan cooling system is so smart and efficiently. The fan speed is controlled by internal temperature sensor.

DC Input Voltage 11-30V

Controls Button

Display Type 2x16 LCD

Display Backlight Blue

Case Material Metal

Cooling System Built-in fan x2pc

Case Size 200x140x55mm

Weight 1220g

External Port Balance Socket-XH, Temperature Probe Socket,

Battery Socket, DC Input, Micro USB Port for PC Control

Delta Peak Detection NiMH/NiCad: 3-15mV/cell (Default 4mV/cell)

Charge Cutoff Temperature 20-80ºC(adjustable)

Charge Voltage NiMH/NiCad: Delta peak detection

LiPo: 4.18-4.3V/cell LiIon: 4.08-4.2V/cell

LiFe: 3.58-3.7V/cell LiHV: 4.25-4.35V/cell

Balance Current Max. 800mA/cell

Trickle Current for NiMH/NiCad 50-300mA & OFF

Reading Voltage Range 0.1-34.8V/cell

Battery Types/Cells LiPo/LiIon/LiFe/LiHV: 2-8cells

NiMH/NiCad: 1-20cells Pb: 2-24V

Battery Capacity Range

LiPo/LiIon/LiFe/LiHV: 100-50000mAh

Pb: 100-50000mAh

Charge Current 0.1A-1A (±0.3A) 1.1A-30A (±10%)

Safety Timer 1-720minutes off

Charge Wattage 700W x 2

Discharge Current 0.1A-5A (±10%)

Balance Port Discharge Current 10-500mA

Discharge Cut-off Voltage NiMH/NiCad: 0.1-1.1V/cell

LiPo: 3.0-3.3V/cell LiIon: 2.9—3.2V/cell

LiFe: 2.6-2.9V/cell LiHV: 3.1-3.4V/cell

Pb: 1.8V

Discharge Wattage 30W X2

Balance Cells 8 cells

Memory 10 different charge/discharge profiles in each channel

Charge Method CC/CV for lithium types and lead (Pb) batteries

Delta-peak Sensitivity for NiMH/NiCad.

http://www.gforce-hobby.jp/products-en/G0122.html

http://www.gforce-hobby.jp/manual_pdf-en/G8duo-manual-EN.pdf

alors categorie dtm 13.5 voiture team magic

j hesite entre plusieurs marque :ip en 6000

muchmore 6000

lrp 5600 tc lcg ou lrp 5800 tc stock spec

le poid etant un des facteurs pour ces marques

et derniere question 5600 est ce suffisant pour du 13.5 voire du 10.5

merci pour votre aide

Je cherche a savoir si les accus muchmore impact 6000 , (MuchMore IMPACT 6000mAh/7.4V 90C FD2), sont en prise 4mm ou 5mm

Ceux sont ceux ci : http://www.muchmoreracing.net/product_view.php?pidx=1235

Vous pensez quoi de ces accus,pour ceux qui roulent avec, à comparer au IP 6000.

merci d'avance

loic

actuellement je possede un chargeur 4 sorties de chez T2M, on le trouve sous d'autres marques, du sky rc rebadgé assuremment

ca va tres bien pour du loisir mais quand on regarde de près les valeurs à la fin d'une charge avec un testeur lipo, je suis loin des 4.2v par el

je cherche donc un chargeur qui équilibre beaucoup mieux mes lipos team orion, des shorty 4500 mah 100c

peut être que je me tracasse pour rien ...

à noter que je charge toujours en mode balance

Product Description

The X2 AC Plus charger offers expanded capacity and compatibility in a portable and compact package. Dual inputs afford flexible battery charging at home and in the field. And our innovative power distribution mode lets you efficiently assign output power based on individual battery requirements. Capable of charging all battery chemistries, the X2 AC Plus has a built-in 10-amp power supply, internal balancing circuits and 10 different charge/discharge profiles, making it an essential tool for all hobbyists. You can even utilize your smartphone for remote control via an optional WiFi module. Hitec brings the future of charging to your fingertips!

Features

Twin Channel Charger with Two Independent Circuits

Power Distribution Circuit for Ultimate Flexibility in AC Mode

Example 1: Channel A – 20W, then Channel B – 80W for a Total 100W Power

Example 2: Channel A – 70W, then Channel B – 30W for a Total 100W Power

Charges NiMH, NiCd, LiPo, LiHV, LiFe, Li-Ion, and Lead Acid Batteries

Built-in 10-Amp Power Supply

Uses Either 11-18V DC or 100-240V AC Power Sources

Adjustable Charge Current Rate of 0.1 – 10.0 Amps Each Port

Internal Balancing Circuits

10 Programmable Profile Settings

Specifications

NiCd/NiMH Cell Count: 1-15 cells

LiPo/LiHV/Li-Ion/LiFe Cell Count: 1-6 cells

Pb voltage: 2-20 volts

Charge Current Range: 0.1-10.0 amps

Maximum Charge Output: AC 100W / DC 100W x 2

http://hitecrcd.com/products/chargers/acdc-chargers/x2-ac-plus-2-port-acdc-multi-charger/product

http://hitecrcd.com/products/chargers/charging-accessories/optional-wifi-module/product

Product Description

Utilize your smartphone for remote control functionality via the optional WiFi module.

Features

Compatible with the X2 AC Plus Charger

View, Change & Customize your X2 AC Plus Options via Smartphone

Supports Both iOS and Android Devices

http://hitecrcd.com/images/products/pdf/395_X2_AC+_Manual_WEB.pdf

http://xciterc.com/en/charger-touch-90-12-230v.html

http://xciterc.com/media/betriebsanleitung/52200000_X-pert_ChargerX90T_W_DE_EN_FR.pdf

DESCRIPTION#

Chargeur qui recharge aussi bien vos accus d'hélicoptères, drones, que de voitures rc, bateaux et avions rc, complet avec de nombreux cordons de recharges.

Le chargeur innovant X-PERT Chargeur X90 tactile invite tout bon dans le modèle LiPo, LiIo-, la vie, NiMH, NiCd ou batteries plomb-acide jusqu'à 6S et 20 V dans le mode Pb. Le fonctionnement est via un écran tactile pratique avec affichage graphique. Pour chaque type de pile, il existe un séparé, parfaitement adaptés au profil de charge de la batterie.

La connexion du chargeur est soit la prise électrique 220v ou une batterie de 12 V de la voiture, ainsi le X-PERT Chargeur X90 Touch est idéal pour la maison.

Avec le courant de charge réglable jusqu'à 10 A, la batterie peut être rechargée rapidement, le courant de décharge jusqu'à 2 A régulé. En plus des paramètres de charge telles que la tension, la capacité ou le courant de charge et le courant de charge ou de la courbe de décharge ou les tensions des cellules individuelles peuvent être représentées graphiquement. Le mode Cycle est idéal pour l'entretien de la batterie.

Caractéristiques:

Chargeur d'ordinateur pour LiPo / LiFe / LiIo-, NiCd / NiMH et batteries au plomb

Convient pour 100 - 240 V AC et 12 V DC

Fonctionnement de l'écran tactile idéal avec affichage graphique

Le courant de charge jusqu'à 10 A, puissance de charge maximale de 90 W, c'est à dire des accus jusqu'à 10 000mAh

Courant de décharge jusqu'à 2 A, la puissance de sortie maximale de 10W

Alimentation de mode à 24 V pour les appareils externes

Boîtier en aluminium moderne et robuste

Balancer pour connecteur XH

Mode Cycle pour l'entretien de la batterie

Des fonctions de sécurité étendues telles que le temps de charge maximale, la capacité ou sous-tension

Capteur de température en option

Contenu de la livraison:

Chargeur, câble d'alimentation, câble de raccordement 12 V, Balancer, câble de charge différents, Manuel de l’utilisateur en français,

Identique au Jamara Chargeur X90 Touch

The innovative X-PERT Charger X90 Touch charges all common RC LiPo, LiIo-, LiFe, NiMH, NiCd or lead-acid batteries up to 6S and 20 V in the Pb-mode. Operation is via a convenient touch screen with Graphical Display. For each battery type there exists a separate, optimally matched charging profile. The charger can be connected either to an electrical outlet or a 12 V car battery, thus the X-PERT Charger X90 Touch is ideal for home and outdoor use. With the adjustable charging current up to 10 A the battery can be recharged quickly, the discharge current is selectable up to 2 A. In addition to charging parameters such as voltage, capacity or charging current, the actual charge or discharge curve or the individual cell voltages can be displayed graphically. The Cycle mode is ideal for battery maintenance. The X-PERT Charger X90 Touch can power external devices up to 24 V in the power supply mode. The modern and robust aluminum housing contains the 4 mm charging sockets, the XH balancer connector and a connector for the optional temperature sensor.

Features:

Computer-assisted charger for Li-Po/Li-Fe/Li-Ion-, NiCd-/NiMH- and lead acid batteries

Suitable for 100 - 240 V AC and 12 V DC

Convenient touch screen operation with graphical display

Charge current up to 10 A, maximum charging power 90 W

Discharge current up to 2 A, maximum discharge power 10W

Power supply mode up to 24 V for external devices

Modern and robust aluminum housing

Balancer adapter for XH connector

Cycle mode for battery maintenance

Extensive security features such as maximum charge time, capacity or undervoltage

Temperature sensor optional

Items delivered:

Charger, Power cable, 12 V cable, Balancer adapter, various charging wires, Manual

je voulais connaitre l'avis des utilisateurs de ce type d'accu , en particulier les plus performant en gamme nano tech ( 50 /100c ou 65/130 c )

je precise , utilisation outdoor, vario novak + moteur 6.5 ( je passerais surement en 4.5 plus tard

normalement pas de course pour l'instant, je sais qu'il ne sont pas homologué

fiabilité, gonflement, etc

merci à vous tous

SKYRC Ultimate 1000W features with high efficiency with synchronous rectification technology, it is accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Lithium Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use

Weight 1240g

LiPo/LiFe/Lilon/LiHV Battery Cell Count 1-8S

DC Input Voltage 11-30V

Charge Circuit Power 1000W

Charge Current Max. 40.0A

Balance Port Charge Current 10-500mA

Discharge Circuit Power 80W

Discharge Current 0.1-8.0A

Regenerative Discharge Current 0.1-40.0A

Current Drain for Balancing Max. 800mA

NiMH/NiCd Battery Cell Count 1-20S

Trickle Charging Current 50mA-300mA & OFF

Pb Battery 2-24V

Revised 2015-01-21

http://www.skyrc.com/index.php?route=product/product&product_id=203

LRP sets technological trends with innovative development work in the area of high-end batteries. RC racers can take profit from brand new and upgraded lines now.

The Low Center of Gravity - LCG - line packs are lower compared to standard packs, resulting in a lower center of gravity and lighter overall weight. Drivers will experience perfect handling and higher corner speed. Also your car will react more directly to your steering input!

The LRP 2900 - Shorty LCG - 110C/55C - 7.4V LiPo - 1/10 Competition Car Line Hardcase is THE innovation for ambitious 2WD offroad competition drivers, exclusively available at LRP. It combines the lower center of gravity with the possibility to adapt the setup of the car to the driver’s preferences.

Complying with the rules of the following federations: IFMAR / EFRA / DMC / BRCA / LRP-HPI-Challenge / LRP-Offroad-Challenge

Features

• LCG - Low Center of Gravity: Lower CG and lighter cells result in higher cornering speed and faster reactions on steering inputs

• HDS-2 - Advanced High Density Stacking technology: High voltage level and low internal resistance

• 110C/55C LiPo power: No memory effect, extremely long lifetime

• 3C Charge current: Safe and fast recharge

• FREE Gold Works Team connectors included

• Tested according to latest UN test standards

• 4mm gold coated connectors

• Durable, see-through, hardcase made of high-quality synthetic material

• 2mm gold coated balancing connector

• LRP quality approved


Specifications

• Weight 142g

• Nominal voltage 7.4V 2S

• Style LCG Shorty

• Dimensions 93.0x47.0x18.5mm

• Capacity 2900

• Balancing connector 2mm Gold

• Connector 4mm Gold

• Application 1/10 2WD Offroad Competition


SKYRC D100 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC mode to get max charging power to shorten charging time. What's more, users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. Besides that, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

Net Weight 975g

Input Voltage AC100-240V / DC 11-18V

Charge Circuit Power DC Input 2 x 100W

AC Input 100W (Support Power Distribution)

Discharge Circuit Power 2 x 10W

Charger Current Range 0.1-10A

Discharge Current Range 0.1-5A

Current Drian for Balancing Port Max 200mA/cell

Trickle Charging Current 30mA-300mA & OFF

LiPo/LiFe/Lilon/LiHV Battery Cell Count 1-6S

NiMH/NiCd Battery Cell Count 1-15S

Pb Battery Voltage 2-20V

Revised 2015-01-22

http://www.skyrc.com/index.php?route=product/product&product_id=210

Speedsport "Shorty" LiPo battery

Team CRC's Speedsport line of LiPo batteries keeps growing! The Speedsport line offers great battery packs at an even better price. These batteries pack a huge punch for your vehicle, NOT your wallet.

And now there's a CRC Speedsport pack ideal for your Losi 22 buggy or any other vehicle that requires a smaller case size than the "standard" 2s size.

(battery pack dimensions provided below. make sure to confirm that the pack will fit your vehicle before ordering.)

Ask your local retailer about Team CRC Speedsport batteries today, and start enjoying top level performance at an entry level price!

Les lipo coqué sont ils obligatoire en piste 1/10 electrique pour pratiquer des courses de ligues et ou cf?

http://tenrc.com/newslist.asp?ID=184

j'ai acheté récemment des accus iP 6000mah 80c qui ont des prises en 5mm.

quelles sont les marques qui font les mêmes prises, ou sinon, existe t'il un moyen d'utiliser des accus avec fiches de 4mm sans tout dessouder au niveau des câbles?

merci d'avance pour vos réponses.

http://gridworksracing.com/shop/tuning-haus-4-5mm-bullet-connectors-w-safety-caps-tuh1175/

-LRP 5700

-IP 6000

-Nvision 5500

-Nvision 6400

-Reedy 5500

Pourriez vous m'indiquer quelle connectique est fournie avec les accus Lipo LRP (2S, 6000, 110C)

sur le papier en tous cas ca a l'air pas mal

http://cs-shop.de/Lipo-74V-5400mAh-CS-Factory-Professional-50C-Hardcase-EFRA-LEGAL-2011#beschreibung

Tout d'abord tous mes vœux pour cette nouvelle année.

J'aimerai savoir comment vous pratiquez pour charger vos accus dans un sac, la prise d'équilibrage est beaucoup trop courte...

Peut-on couper et rallonger ou peut-on fabriquer à la demande?

Chargeur Power Peak Twin EQ-BID 1000W ROBBE, les prises sont en 7s.

Merci d'avance.

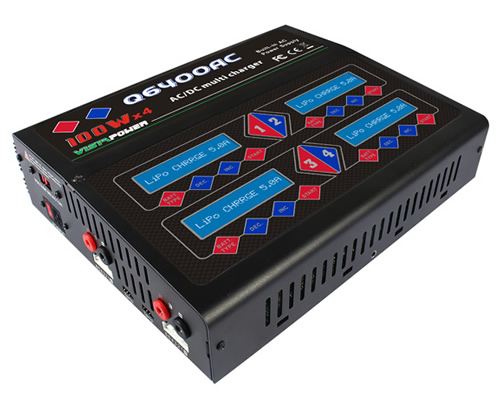

It is a quad AC/DC charger, it could charge four packs of batteries at the same time and display data of each portsingly.

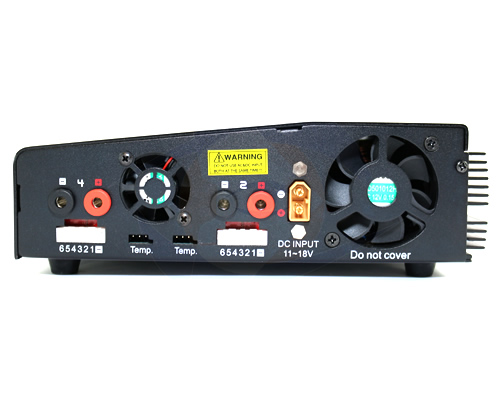

Left view

With two independent output and temp port, two cooling fans could help charger cool down efficiently.

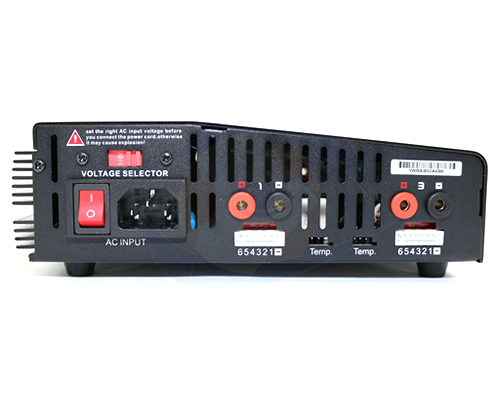

Right view

With AC/ DC input , two independent output and temp port . In temp port you could connect charger and PC with USB software kits to monitor and analysis battery performance completely.

AC Input voltage 110or220V

DC Input voltage 11-18.0V

Charge power max.100W*4

Discharger power max.10W*4

Charge current range 0.1-10.0A

Discharge current range 0.1-2.0A

NiCd/NiMH battery cell count 1 - 15cells

LiPo/LiLo/LiFe battery cell count 1 - 6series

Pb battery voltage 2 V - 20V

Dimensions 243x191x67mm

weight 1750g

http://www.ev-peak.com/Q6400AC.html

Je dois changer mes packs pour la saison prochaine et je voulais savoir si les packs square seront autorisés pour les manche national ( championnat de France et coupes )

Merci pour vos reponse

merci

SKYRC Ultimate 1000W features with high efficiency with synchronous rectification technology, it is accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Lithium Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

Weight 1240g

LiPo/LiFe/Lilon/LiHV Battery Cell Count 1-8S

DC Input Voltage 11-30V

Charge Circuit Power 1000W

Charge Current Max. 40.0A

Balance Port Charge Current 10-500mA

Discharge Circuit Power 80W

Discharge Current 0.1-8.0A

Regenerative Discharge Current 0.1-40.0A

Current Drain for Balancing Max. 800mA

NiMH/NiCd Battery Cell Count 1-20S

Trickle Charging Current 50mA-300mA & OFF

Pb Battery 2-24V

http://www.skyrc.com/index.php?route=product/product&product_id=203
